MTMM-106-09-T-D-090

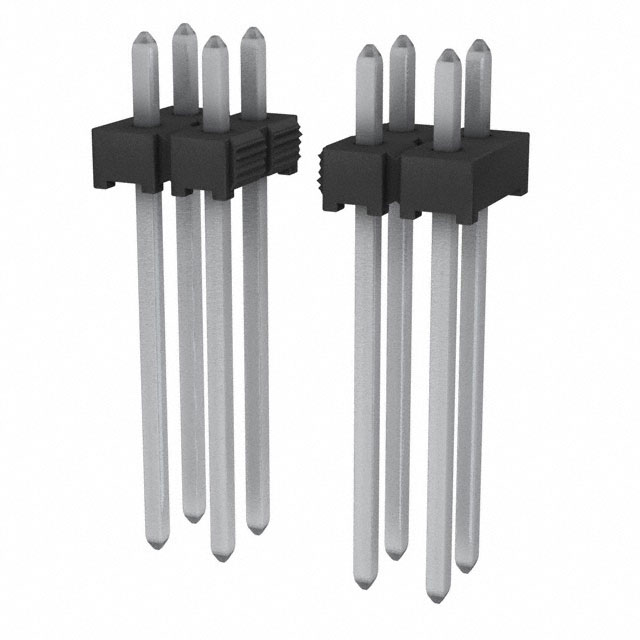

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MTMM-106-09-T-D-090 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MTMM-106-09-T-D-090 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MTMM-106-09-T-D-090 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 12POS 2MM DL TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.428 | $0.376 | $0.325 | $0.266 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.236 | $0.207 | $0.196 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MTMM-106-09-T-D-090 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 12POS 2MM DL TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 106327 pcs | Data sheet | MTMM-1yy-yy-yy-y-yyy-yy-yyy DrawingTMM_TH Double Row FootprintMTMM Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | MTMM |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | 0.535" (13.59mm) |
| Other Names | MTMM-106-09-T-D-090-ND SAM13316 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 12 position 0.079" (2.00mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.386" (9.80mm) | Contact Length - Mating | 0.090" (2.29mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header, Cuttable | Applications | - |
