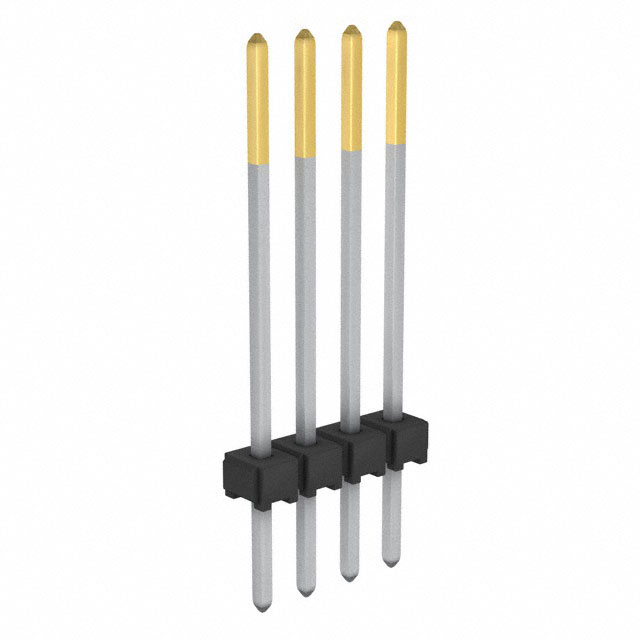

MTMM-104-14-S-S-535
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MTMM-104-14-S-S-535 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MTMM-104-14-S-S-535 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MTMM-104-14-S-S-535 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 4POS 2MM SGL GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.511 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MTMM-104-14-S-S-535 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 4POS 2MM SGL GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68465 pcs | Data sheet | TMM_TH Single Hole FootprintMTMM-1yy-yy-yy-y-yyy-yy-yyy DrawingMTMM Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | MTMM |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | 0.751" (19.08mm) |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.059" (1.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 4 position 0.079" (2.00mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.157" (4.00mm) |
| Contact Length - Mating | 0.535" (13.59mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header, Cuttable |
| Applications | - |
