MTLW-104-07-S-D-245

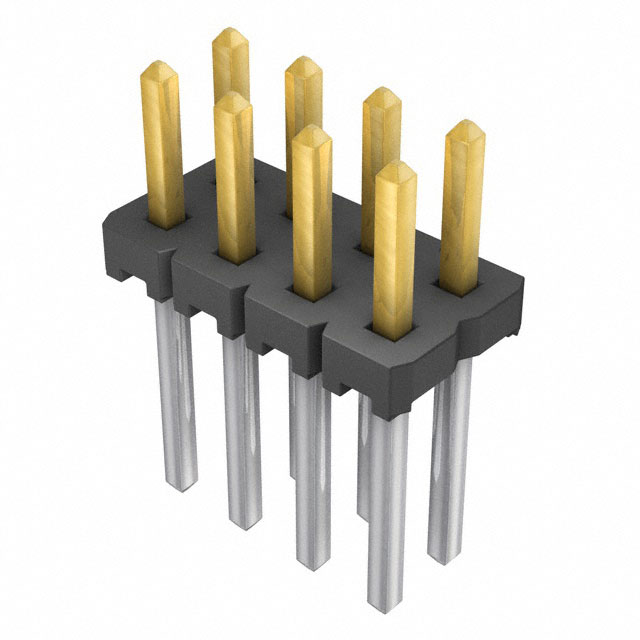

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MTLW-104-07-S-D-245 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MTLW-104-07-S-D-245 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MTLW-104-07-S-D-245 |
|---|---|
| Manufacturer | Samtec Inc. |
| Description | CONN HEADER 8POS 1.00" DL GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.621 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MTLW-104-07-S-D-245 | Manufacturer | Samtec Inc. |
|---|---|---|---|
| Description | CONN HEADER 8POS 1.00" DL GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55619 pcs | Data sheet | MTLW, TLW Series DatasheetMTLW-1yy-yy-y-y-yyy-yy-yy Drawing 1MTLW-1yy-yy-y-y-yyy-yy-yy Drawing 2 |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Phosphor Bronze |
| Type Attributes | - | Termination | Solder |
| Style | Board to Board or Cable | Stacking Direction | Male Pin |
| Shrouding | 0.100" (2.54mm) | Shield Termination | Square |
| Series | Flex Stack, MTLW | Row Spacing - Mating | Unshrouded |
| RoHS Status | Tube | Ripple Current - Low Frequency | - |
| Pitch - Connector | - | Overall Contact Length | 0.125" (3.18mm) |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions | 8 | Number of Contacts | - |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | All |
| Manufacturer Standard Lead Time | 3 Weeks | Manufacturer Part Number | MTLW-104-07-S-D-245 |
| Length - Post (Mating) | - | Insulation Material | Tin |
| Insulation Height | 0.430" (10.92mm) | Features | - |
| Expanded Description | 8 Positions Header Connector 0.100" (2.54mm) Through Hole Gold | Description | CONN HEADER 8POS 1.00" DL GOLD |
| Current Rating | 5.2A per Contact | Current - Max/Contact | - |
| Contact Length - Post | 0.245" (6.22mm) | Contact Length - Mating | 0.100" (2.54mm) |
| Contact Finish Thickness - Post | Liquid Crystal Polymer (LCP) | Contact Finish Thickness - Mating | Gold |
| Contact Finish - Post | 30µin (0.76µm) | Contact Finish - Mating | 0.060" (1.52mm) |
| Connector Type | Header | Actual Diameter | Black |
