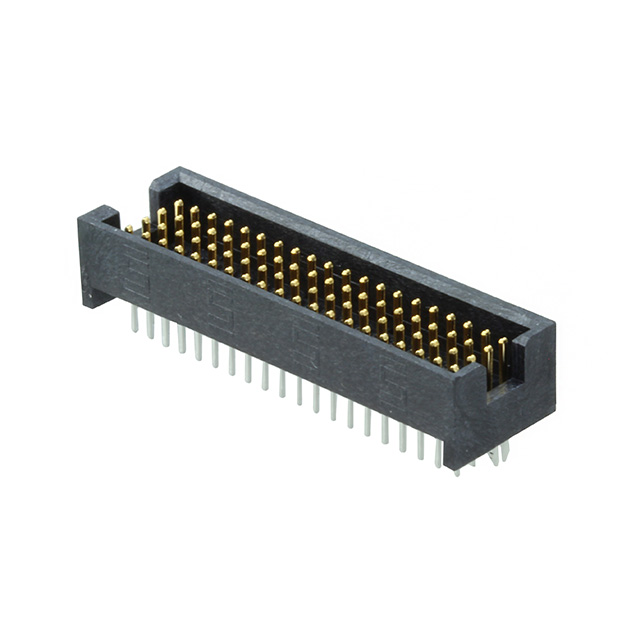

MOLC-120-01-S-Q-LC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MOLC-120-01-S-Q-LC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MOLC-120-01-S-Q-LC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MOLC-120-01-S-Q-LC |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .050 X .050 4 ROW TERMINAL STRIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $6.898 | $6.405 | $4.927 | $4.50 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MOLC-120-01-S-Q-LC | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .050 X .050 4 ROW TERMINAL STRIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8581 pcs | Data sheet | MOLC Series DatasheetMOLC-1yy-yy-yy-Q-yy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | FOURRAY™ MOLC |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | MOLC-120-01-S-Q-LC-ND SAM11524 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 80 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 5.97mm | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.220" (5.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 80 position 0.050" (1.27mm) |
| Current Rating | 2.6A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.075" (1.91mm) | Contact Length - Mating | 0.133" (3.38mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
