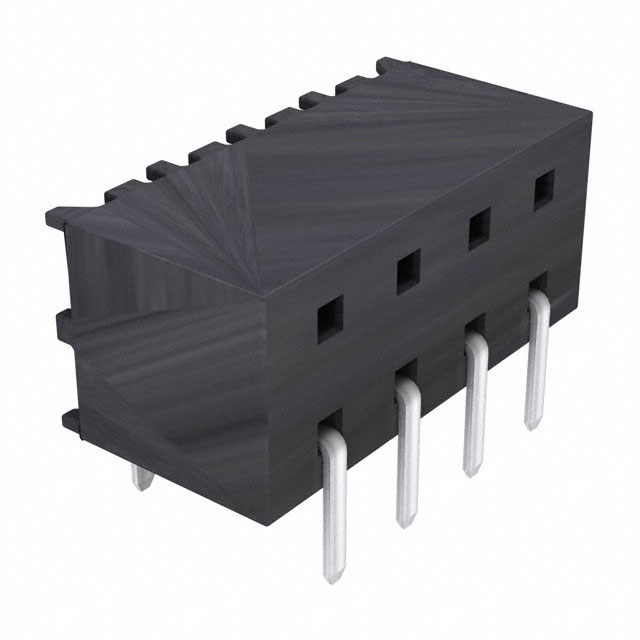

MMS-104-01-L-DH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MMS-104-01-L-DH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MMS-104-01-L-DH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MMS-104-01-L-DH |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT 2MM 8POS DL HORZ PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MMS-104-01-L-DH | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT 2MM 8POS DL HORZ PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5950 pcs | Data sheet | MMS-01 DH Through Hole FootprintMMS-1xx-01 Drawing 2MMS-1xx-01 Drawing 1MMS Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | MMS | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
| Other Names | SAM1227-04 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.157" (4.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 8 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold | Current Rating | 3.9A per Contact |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
