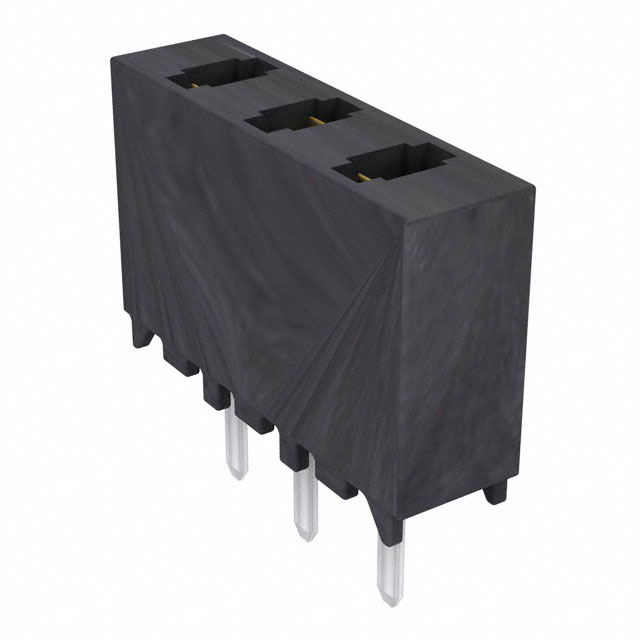

MMS-103-01-L-SV
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MMS-103-01-L-SV with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MMS-103-01-L-SV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MMS-103-01-L-SV |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT 2MM 3POS SGL VERT PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.987 | $0.857 | $0.725 | $0.577 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.47 | $0.429 | $0.412 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MMS-103-01-L-SV | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT 2MM 3POS SGL VERT PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80539 pcs | Data sheet | MMS-1xx-01 Drawing 2MMS-1xx-01 Drawing 1MMS Series DatasheetMMS-01 SV Through Hole Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | MMS | Row Spacing - Mating | - |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
| Other Names | SAM1230-03 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.175" (4.45mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 3 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | 3.9A per Contact |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.115" (2.92mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
