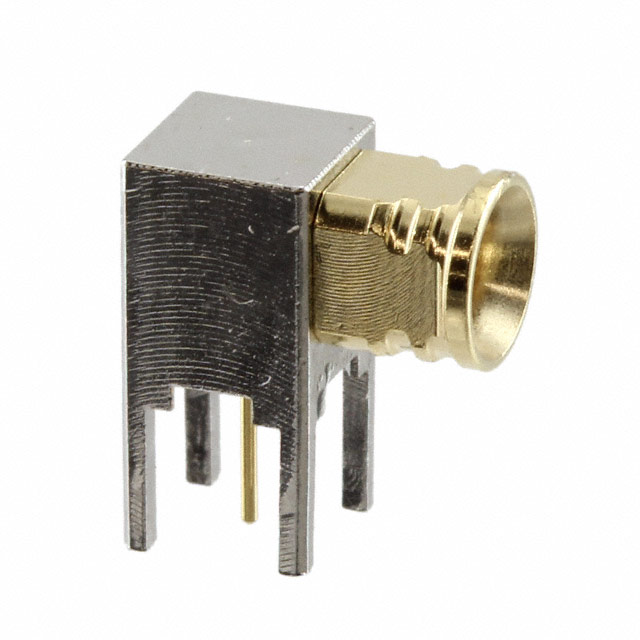

MMCX7-J-P-GF-RA-TH1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MMCX7-J-P-GF-RA-TH1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MMCX7-J-P-GF-RA-TH1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MMCX7-J-P-GF-RA-TH1 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN MMCX JACK R/A 75 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.708 | $3.545 | $3.223 | $3.062 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.981 | $2.659 | $2.498 | $2.208 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MMCX7-J-P-GF-RA-TH1 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN MMCX JACK R/A 75 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15206 pcs | Data sheet | MMCX7-y-P-yF-yy-TH1 DatasheetMMCX7-J-P-yF-RA-THy Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | TRUE75™ MMCX7 | Packaging | Tray |
| Other Names | MMCX7-J-P-GF-RA-TH1-ND SAM11505 |
Operating Temperature | -65°C ~ 125°C |
| Number of Ports | 1 | Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | - |
| Impedance | 75 Ohm | Housing Color | Gold |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | MMCX Connector Jack, Female Socket 75 Ohm Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | MMCX | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | Gold |
