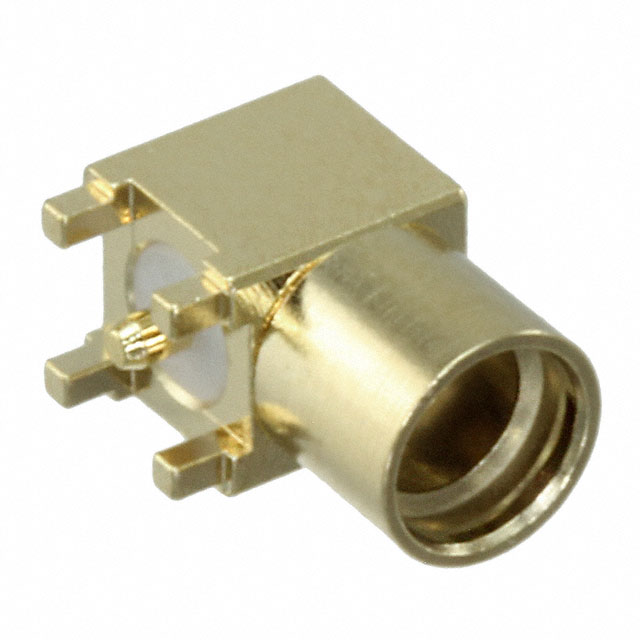

MMCX-J-P-H-RA-SM1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MMCX-J-P-H-RA-SM1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MMCX-J-P-H-RA-SM1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MMCX-J-P-H-RA-SM1 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN MMCX JACK R/A 50 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.933 | $1.855 | $1.701 | $1.623 | $1.546 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.353 | $1.314 | $1.121 | $1.044 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MMCX-J-P-H-RA-SM1 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN MMCX JACK R/A 50 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31063 pcs | Data sheet | MMCX-J-P-H-RA-SM1 DrawingMMCX Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | - |
| Packaging | Tray | Other Names | SAM9712 |
| Operating Temperature | -65°C ~ 125°C | Number of Ports | 1 |
| Mounting Type | Surface Mount, Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 6GHz | Features | - |
| Fastening Type | Snap-On | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | MMCX Connector Jack, Female Socket 50 Ohm Surface Mount, Right Angle Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | MMCX |
| Center Contact Plating | Gold | Center Contact Material | Copper Alloy |
| Cable Group | - | Body Material | Brass |
| Body Finish | Gold |
