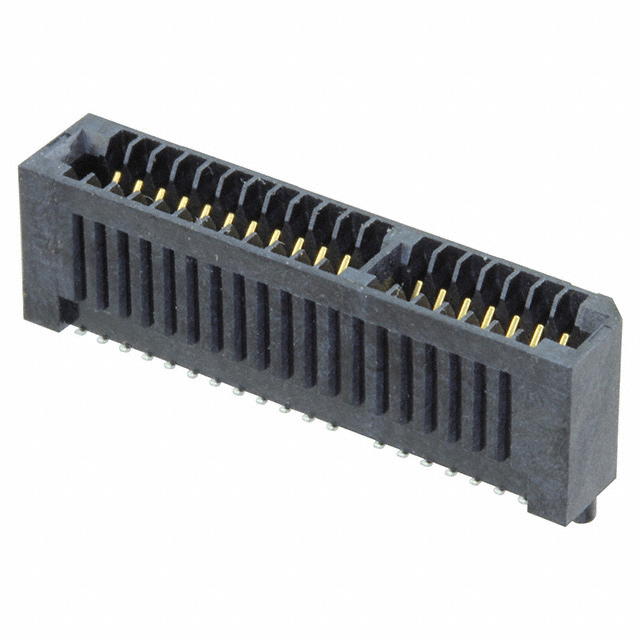

MECF-20-01-L-DV
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MECF-20-01-L-DV with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MECF-20-01-L-DV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MECF-20-01-L-DV |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | MECF .050 EDGE CARD ASSEMBLY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.185 | $2.096 | $1.921 | $1.834 | $1.746 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.528 | $1.484 | $1.266 | $1.179 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MECF-20-01-L-DV | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | MECF .050 EDGE CARD ASSEMBLY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27007 pcs | Data sheet | MECF Series DatasheetMECF-xx-xx-xx-DV-xx-xx Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | MECF | Read Out | Dual |
| Pitch | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | MECF-20-01-L-DV-ND SAM11497 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | 20 |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Liquid Crystal Polymer (LCP) |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | - |
| Features | Board Guide | Contact Type | Cantilever |
| Contact Material | Beryllium Copper | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Color | Black |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.093" (2.36mm) |
