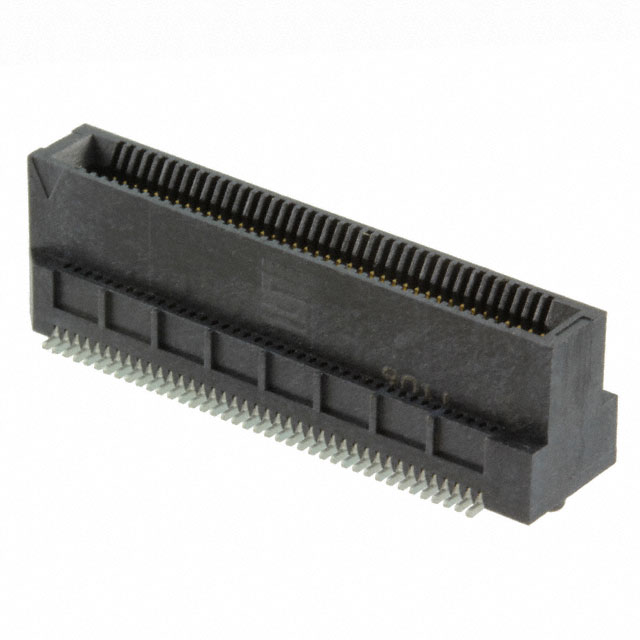

MEC6-140-02-S-DV-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MEC6-140-02-S-DV-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MEC6-140-02-S-DV-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MEC6-140-02-S-DV-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN EDGE DUAL FMALE 80POS 0.025 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.374 | $3.225 | $2.932 | $2.785 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.712 | $2.419 | $2.272 | $2.008 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MEC6-140-02-S-DV-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 80POS 0.025 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15867 pcs | Data sheet | MEC6-DV Surface Mount FootprintMEC6-DV Series DatasheetMEC6-1xx-xx-x-DV-xx Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | MEC6 - DV | Read Out | Dual |
| Pitch | 0.025" (0.64mm) | Packaging | Tube |
| Other Names | MEC6-140-02-S-DV-A-ND SAM8947 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | - |
| Number of Positions | 80 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Liquid Crystal Polymer (LCP) |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | - |
| Features | Board Guide | Contact Type | - |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Color | Black |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.062" (1.57mm) |
