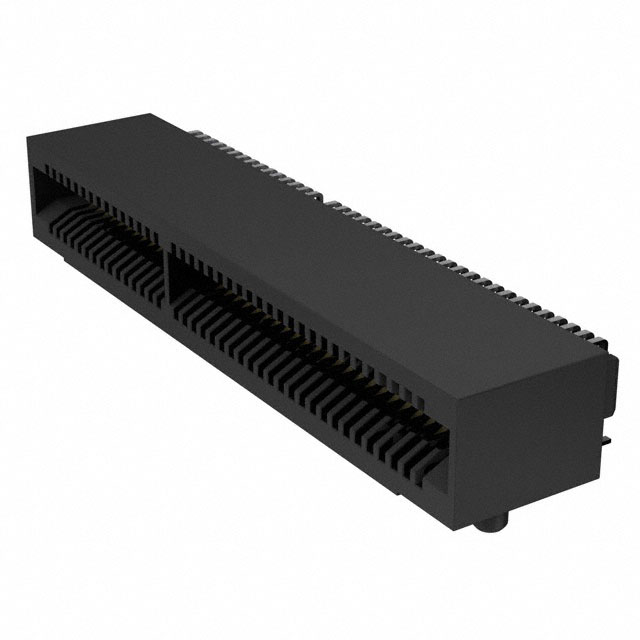

MEC1-140-02-L-D-RA1-SL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MEC1-140-02-L-D-RA1-SL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MEC1-140-02-L-D-RA1-SL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MEC1-140-02-L-D-RA1-SL |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN EDGE DUAL FMALE 80POS 0.039 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $3.316 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MEC1-140-02-L-D-RA1-SL | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 80POS 0.039 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9508 pcs | Data sheet | MEC1-RA/EM Series DatasheetEdge Mnt Sockets CatalogMEC1-RA Right Angle & Mating Card FootprintMEC1-1xx-xx-xx-D-RAx-xx-SL-xx Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | MEC1 | Read Out | Dual |
| Pitch | 0.039" (1.00mm) | Packaging | Tube |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions/Bay/Row | - | Number of Positions | 80 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Liquid Crystal Polymer (LCP) | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Gender | Female |
| Flange Feature | - | Features | Board Lock |
| Contact Type | Loop Bellows | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Color | Black | Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.062" (1.57mm) |
