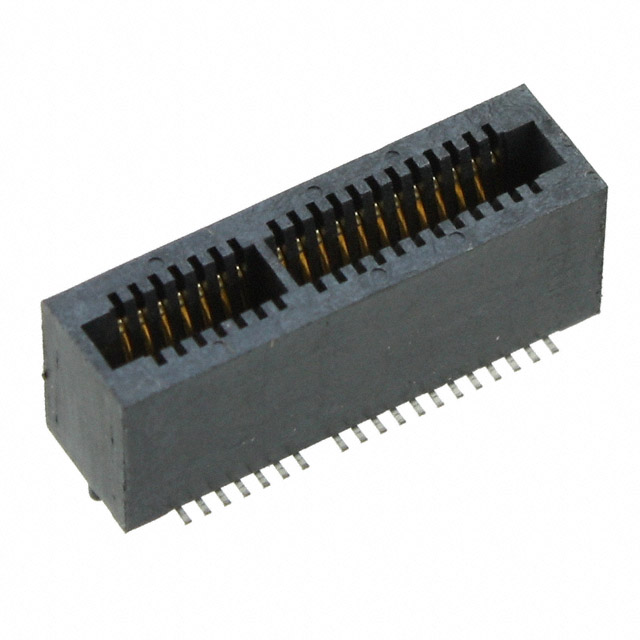

MEC1-120-02-S-D-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MEC1-120-02-S-D-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MEC1-120-02-S-D-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MEC1-120-02-S-D-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN EDGE DUAL FMALE 40POS 0.039 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 23 pcs | 46 pcs | 69 pcs | |
|---|---|---|---|---|---|
| $2.965 | $2.842 | $2.595 | $2.472 | ||
| 115 pcs | 253 pcs | 506 pcs | 1012 pcs | ||
| $2.348 | $2.101 | $1.977 | $1.73 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MEC1-120-02-S-D-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 40POS 0.039 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19423 pcs | Data sheet | MEC1 Series DatasheetMEC1 Series DrawingMEC1 Surface Mount & Mating Card Footprint |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | MEC1 | Read Out | Dual |
| Pitch | 0.039" (1.00mm) | Packaging | Tube |
| Other Names | MEC112002SDA SAM8117 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | - |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Liquid Crystal Polymer (LCP) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Gender | Female |
| Flange Feature | - | Features | Board Guide |
| Contact Type | Loop Bellows | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Color | Black | Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.062" (1.57mm) |
