MEC1-120-02-L-D-NP-A-K-TR

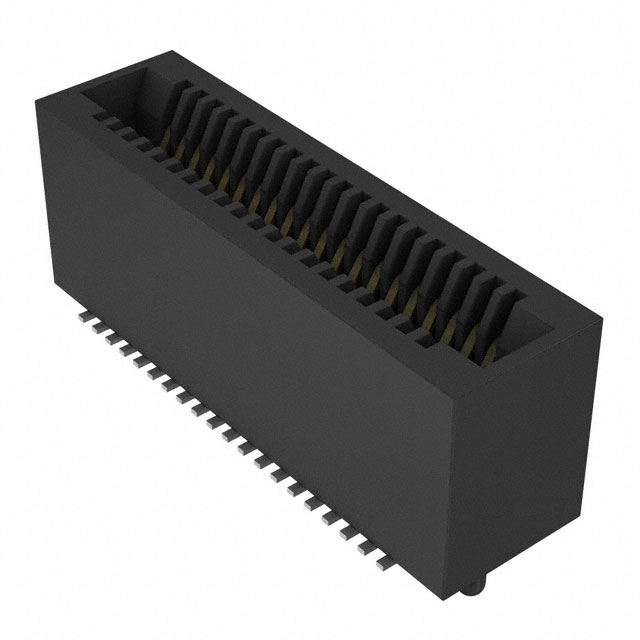

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MEC1-120-02-L-D-NP-A-K-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MEC1-120-02-L-D-NP-A-K-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MEC1-120-02-L-D-NP-A-K-TR |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 1MM MINI-EDGE CARD ASSEMBLY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 200 pcs | 400 pcs | 600 pcs | 1000 pcs | 2000 pcs |
|---|---|---|---|---|---|
| $1.917 | $1.715 | $1.614 | $1.412 | $1.382 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | MEC1-120-02-L-D-NP-A-K-TR | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 1MM MINI-EDGE CARD ASSEMBLY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22761 pcs | Data sheet | MEC1 Series DatasheetMEC1 Series DrawingMEC1 Surface Mount & Mating Card Footprint |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | MEC1 | Read Out | Dual |
| Pitch | 0.039" (1.00mm) | Packaging | Tape & Reel (TR) |
| Other Names | MEC1-120-02-L-D-NP-A-K-TR-ND SAM14184TR |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | - |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Liquid Crystal Polymer (LCP) |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | - |
| Features | Board Guide | Contact Type | Loop Bellows |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Color | Black |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.062" (1.57mm) |
