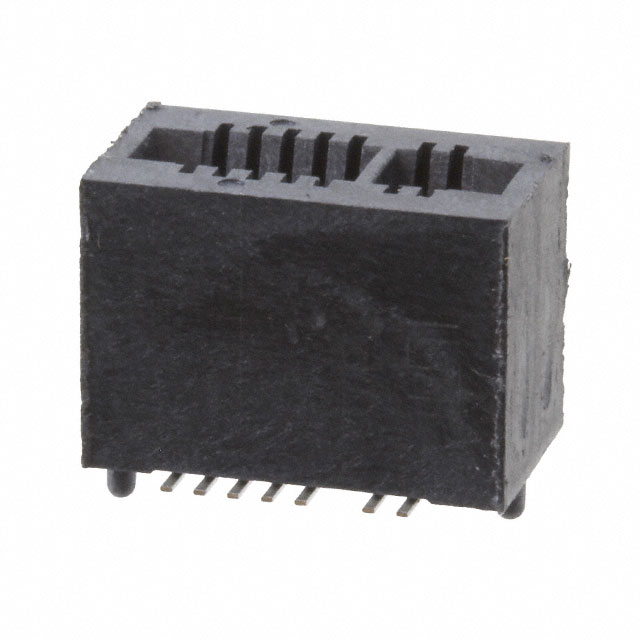

MEC1-108-02-F-D-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MEC1-108-02-F-D-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MEC1-108-02-F-D-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MEC1-108-02-F-D-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 1MM MINI-EDGE CARD ASSY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 45 pcs | 90 pcs | 135 pcs |
|---|---|---|---|---|---|
| $1.717 | $1.646 | $1.509 | $1.44 | $1.372 | |
| 270 pcs | 540 pcs | 1035 pcs | 2520 pcs | ||
| $1.20 | $1.166 | $0.995 | $0.926 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MEC1-108-02-F-D-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 1MM MINI-EDGE CARD ASSY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39679 pcs | Data sheet | MEC1 Series DatasheetMEC1 Series DrawingMEC1 Surface Mount & Mating Card Footprint |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | MEC1 | Read Out | Dual |
| Pitch | 0.039" (1.00mm) | Packaging | Tube |
| Other Names | SAM9698 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | - |
| Number of Positions | 16 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Liquid Crystal Polymer (LCP) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Gender | Female |
| Flange Feature | - | Features | Board Guide |
| Contact Type | - | Contact Material | Beryllium Copper |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Color | Black | Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.062" (1.57mm) |
