MB1-120-01-L-S-02-SL

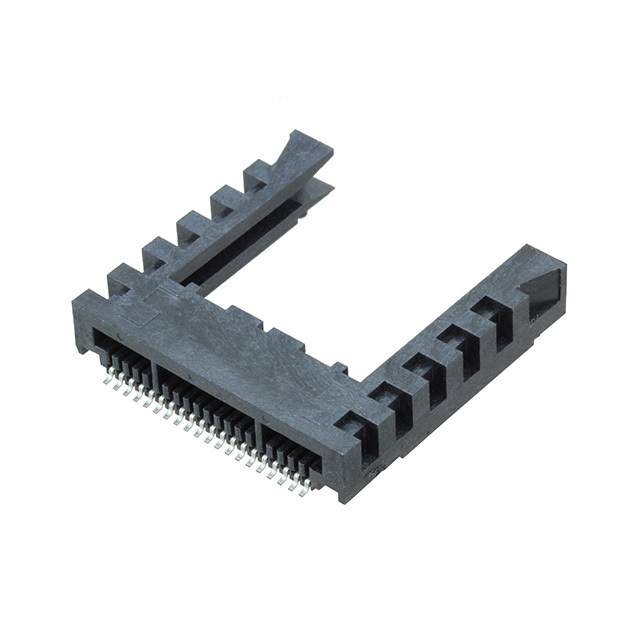

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MB1-120-01-L-S-02-SL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MB1-120-01-L-S-02-SL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MB1-120-01-L-S-02-SL |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 1MM MINI CARD GUIDE ASSEMBLY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.198 | $2.11 | $1.935 | $1.847 | $1.759 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.539 | $1.495 | $1.275 | $1.187 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MB1-120-01-L-S-02-SL | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 1MM MINI CARD GUIDE ASSEMBLY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26975 pcs | Data sheet | MB1 DatasheetMB1-1yy-01-yy-S-0y-yy-y Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | MB1 | Read Out | Single |
| Pitch | 0.039" (1.00mm) | Packaging | Tube |
| Other Names | MB1-120-01-L-S-02-SL-ND SAM12699 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions/Bay/Row | - |
| Number of Positions | 20 | Mounting Type | Surface Mount, Right Angle |
| Material - Insulation | Liquid Crystal Polymer (LCP) | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Gender | Female |
| Flange Feature | - | Features | Board Guide, Card Guide |
| Contact Type | Loop Bellows | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Color | Black | Card Type | Non Specified - Single Edge |
| Card Thickness | 0.062" (1.57mm) |
