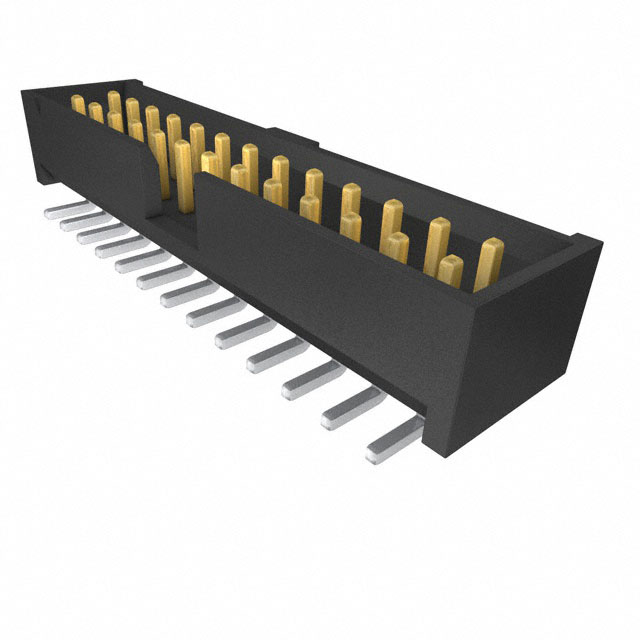

LTMM-113-02-F-D-SM
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LTMM-113-02-F-D-SM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LTMM-113-02-F-D-SM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LTMM-113-02-F-D-SM |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN SHROUD STACKER 26POS SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.481 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | LTMM-113-02-F-D-SM | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN SHROUD STACKER 26POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20695 pcs | Data sheet | LTMM-1XX-XX-XX-D-XX-XX DrawingLTMM-1xx-xx-xx-D-xx-xx FootprintSTMM/LTMM, ZSTMM/ZLTMM Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Flex Stack, LTMM |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | Q7298754 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.190" (4.83mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 26 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
