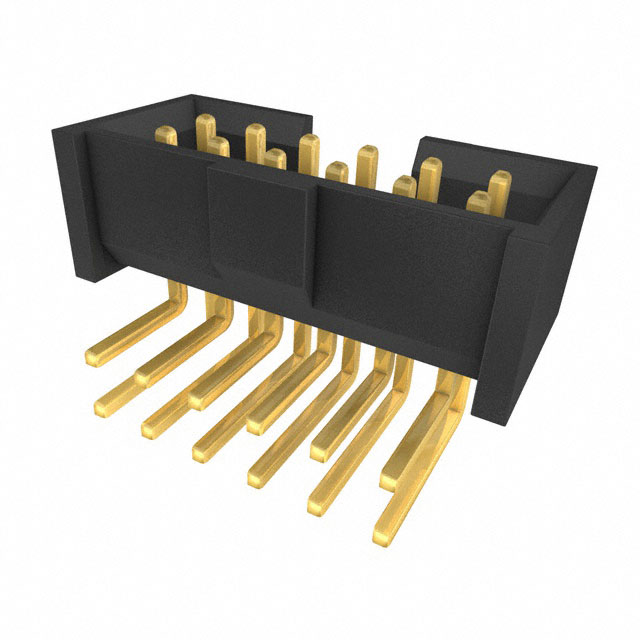

LTMM-106-02-G-D-RA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LTMM-106-02-G-D-RA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LTMM-106-02-G-D-RA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LTMM-106-02-G-D-RA |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN SHROUD STACKER 12POS RA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.52 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | LTMM-106-02-G-D-RA | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN SHROUD STACKER 12POS RA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22069 pcs | Data sheet | LTMM-1XX-XX-XX-D-XX-XX DrawingLTMM-1xx-xx-xx-D-xx-xx FootprintSTMM/LTMM, ZSTMM/ZLTMM Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Flex Stack, LTMM |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 12 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.237" (6.03mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 12 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.090" (2.29mm) | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
