LTMM-105-02-G-D

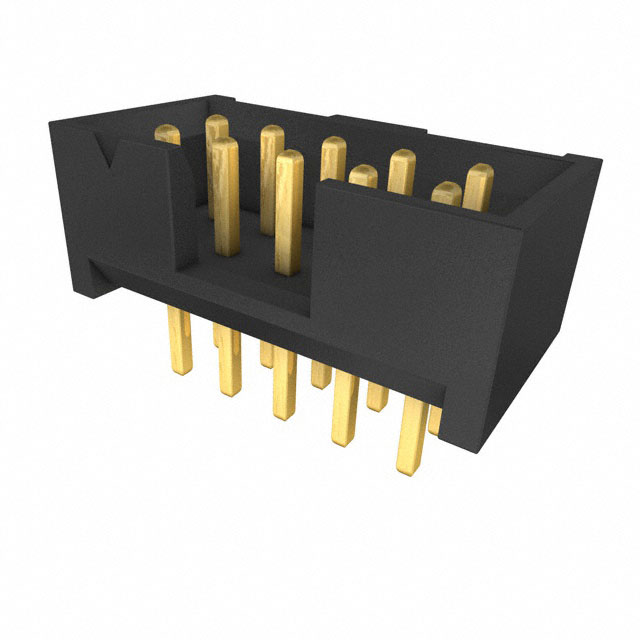

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LTMM-105-02-G-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LTMM-105-02-G-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LTMM-105-02-G-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN SHROUDED HEADER HDR 10 POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 46 pcs | 138 pcs | ||
|---|---|---|---|---|---|
| $1.378 | $1.213 | $1.103 | |||
| 506 pcs | 1012 pcs | 5014 pcs | |||
| $0.937 | $0.799 | $0.717 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | LTMM-105-02-G-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN SHROUDED HEADER HDR 10 POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53936 pcs | Data sheet | LTMM-1XX-XX-XX-D-XX-XX DrawingLTMM-1xx-xx-xx-D-xx-xx FootprintSTMM/LTMM, ZSTMM/ZLTMM Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Flex Stack, LTMM |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | LTMM-105-02-G-D-ND Q5741112ABCB SAM12693 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.190" (4.83mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 10 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
