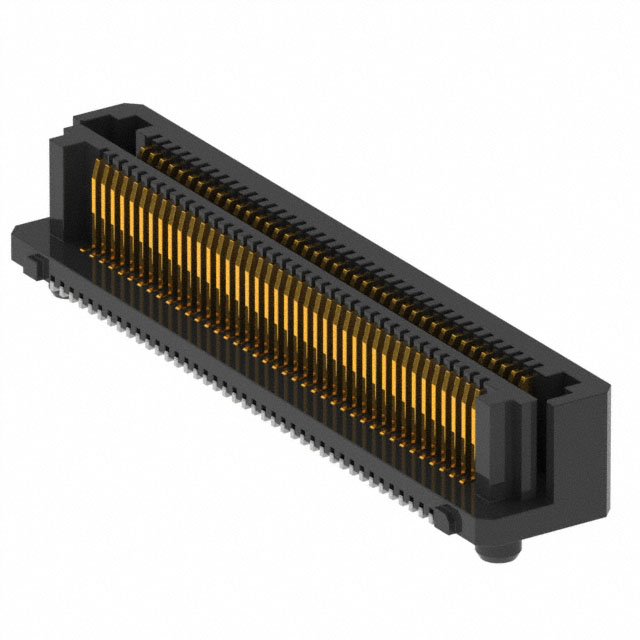

LSHM-140-02.5-F-DV-A-N-K-TR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LSHM-140-02.5-F-DV-A-N-K-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LSHM-140-02.5-F-DV-A-N-K-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LSHM-140-02.5-F-DV-A-N-K-TR |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 0.50MM TERMINAL/SOCKET COMBO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 600 pcs | 1200 pcs | 1800 pcs | ||
|---|---|---|---|---|---|
| $1.589 | $1.501 | $1.471 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | LSHM-140-02.5-F-DV-A-N-K-TR | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 0.50MM TERMINAL/SOCKET COMBO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21860 pcs | Data sheet | LSHM-DV Series DatasheetLSHM-1xx-xx.x-xx-DV-A-X-X-TR DrawingLSHM Veritcal SMT Footprint |
| Category | Connectors, Interconnects | Series | Razor Beam™ LSHM |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | LSHM-140-02.5-F-DV-A-N-K-TR-ND SAM14124TR |
Number of Rows | 2 |
| Number of Positions | 80 | Mounting Type | Surface Mount |
| Mated Stacking Heights | 5mm, 5.5mm, 6.5mm, 8.5mm | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.156" (3.96mm) |
| Features | Board Guide, Pick and Place | Detailed Description | 80 Position Connector Self Mating, Non-Gendered Surface Mount Gold |
| Contact Finish Thickness | 3.00µin (0.076µm) | Contact Finish | Gold |
| Connector Type | Self Mating, Non-Gendered |
