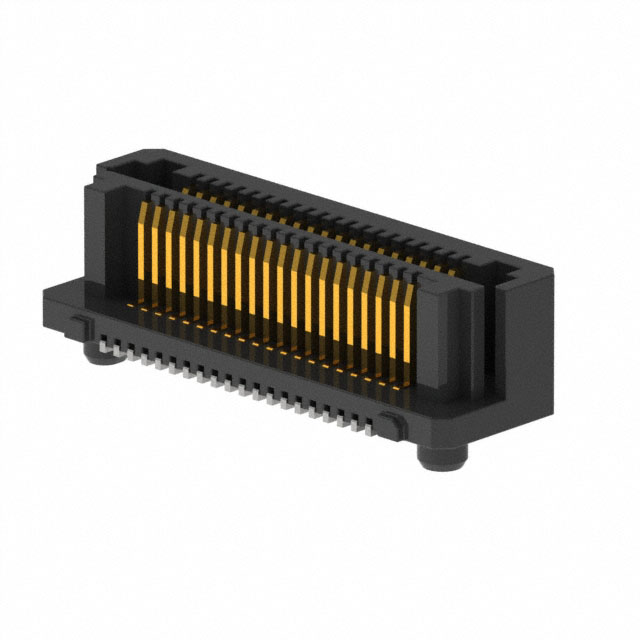

LSHM-120-02.5-L-DV-A-N-TR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LSHM-120-02.5-L-DV-A-N-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LSHM-120-02.5-L-DV-A-N-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LSHM-120-02.5-L-DV-A-N-TR |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 0.50MM TERMINAL/SOCKET COMBO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 800 pcs | 1600 pcs | 2400 pcs | ||
|---|---|---|---|---|---|
| $1.107 | $1.046 | $1.025 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | LSHM-120-02.5-L-DV-A-N-TR | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 0.50MM TERMINAL/SOCKET COMBO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37766 pcs | Data sheet | LSHM-DV Series DatasheetLSHM-1xx-xx.x-xx-DV-A-X-X-TR DrawingLSHM Veritcal SMT Footprint |
| Category | Connectors, Interconnects | Series | Razor Beam™ LSHM |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | LSHM-120-02.5-L-DV-A-N-TR-ND SAM14080TR |
Number of Rows | 2 |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 5mm, 5.5mm, 6.5mm, 8.5mm |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.156" (3.96mm) | Features | Board Guide |
| Detailed Description | 40 Position Connector Self Mating, Non-Gendered Surface Mount Gold | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Connector Type | Self Mating, Non-Gendered |
