IPT1-120-01-S-D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPT1-120-01-S-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPT1-120-01-S-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPT1-120-01-S-D |
|---|---|
| Manufacturer | Samtec, Inc. |

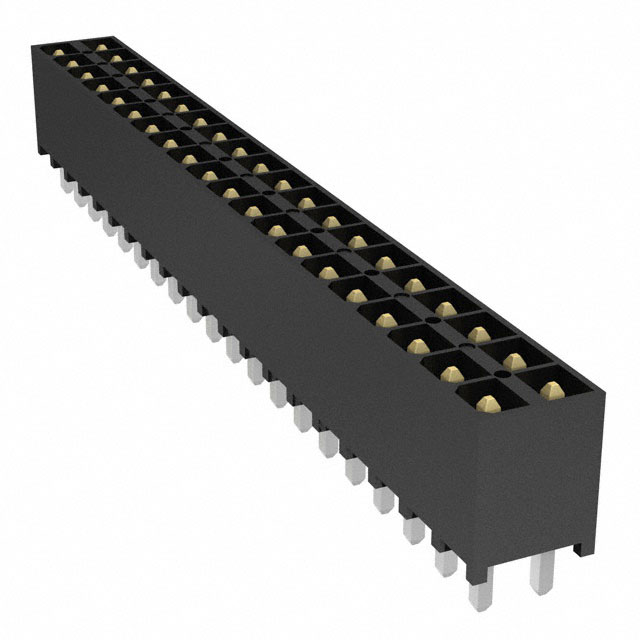

| Description | CONN PLUG .100" 40POS DUAL PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $2.496 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IPT1-120-01-S-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN PLUG .100" 40POS DUAL PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14100 pcs | Data sheet | IPT1 Series DatasheetIPT1-1x-x-x-D-x Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 775VAC, 1095VDC |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Mini Mate® IPT1 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | 0.335" (8.51mm) |
| Other Names | SAM8109 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.250" (6.35mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 40 position 0.100" (2.54mm) |
| Current Rating | 2.3A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.085" (2.16mm) | Contact Length - Mating | 0.155" (3.94mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
