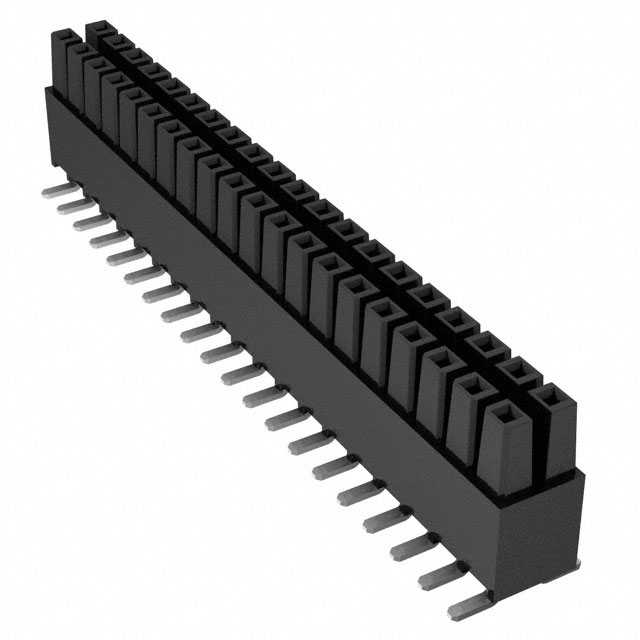

IPS1-120-01-S-D-VS
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPS1-120-01-S-D-VS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPS1-120-01-S-D-VS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPS1-120-01-S-D-VS |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT .100" 40POS DL PCB SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $2.363 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IPS1-120-01-S-D-VS | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT .100" 40POS DL PCB SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13794 pcs | Data sheet | IPS1-1zz-01-zz-D-VS DrawingIPS1 Surface Mount FootprintIPS1 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 775VAC, 1095VDC |
| Termination | Solder | Style | Board to Board |
| Series | Mini Mate® IPS1 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | SAM8096 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.335" (8.51mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 40 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
