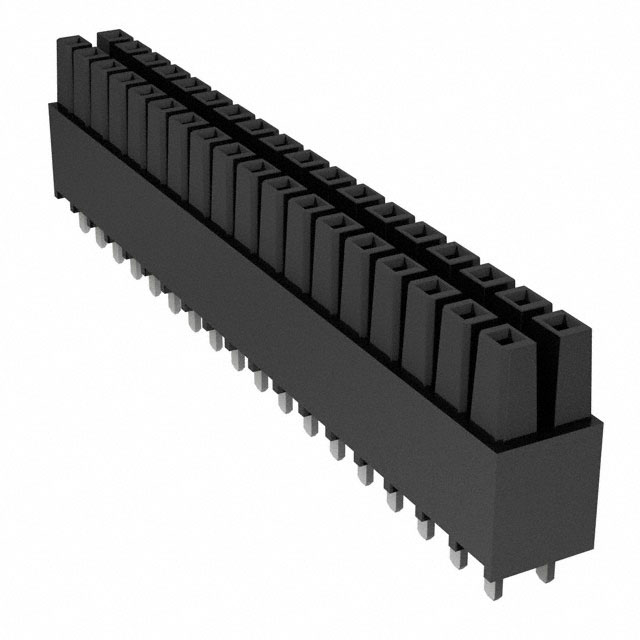

IPS1-118-01-S-D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPS1-118-01-S-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPS1-118-01-S-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPS1-118-01-S-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN SHROUDED PWR SOCKET 36POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $1.48 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IPS1-118-01-S-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN SHROUDED PWR SOCKET 36POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25116 pcs | Data sheet | IPS1 Through Hole FootprintIPS1-1yy-yy-yy-D-yy DrawingIPS1 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 775VAC, 1095VDC |
| Termination | Solder | Style | Board to Board |
| Series | Mini Mate® IPS1 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 36 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.335" (8.51mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 36 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.100" (2.54mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
