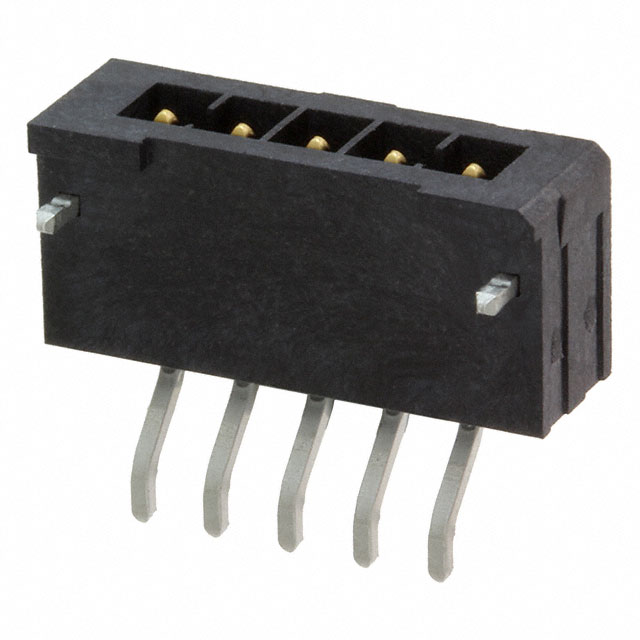

IPL1-105-02-L-SH-K
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPL1-105-02-L-SH-K with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPL1-105-02-L-SH-K with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPL1-105-02-L-SH-K |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN5 POS 2.54MM SOLDER RA SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 34 pcs | 102 pcs | 510 pcs | 1020 pcs |
|---|---|---|---|---|---|
| $1.42 | $1.25 | $1.136 | $0.966 | $0.824 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | IPL1-105-02-L-SH-K | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN5 POS 2.54MM SOLDER RA SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 47707 pcs | Data sheet | IPL1-1yy-yy-yyy-SH-K-yy DrawingIPL1 Series DatasheetIPL1-1yy-yy-yyy-SH-K Footprint |
| Category | Connectors, Interconnects | Voltage Rating | 675VAC, 954VDC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini Mate® IPL1 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | IPL1-105-02-L-SH-K-ND Q7694917 SAM10580 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.220" (5.60mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Surface Mount, Right Angle 5 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.215" (5.46mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
