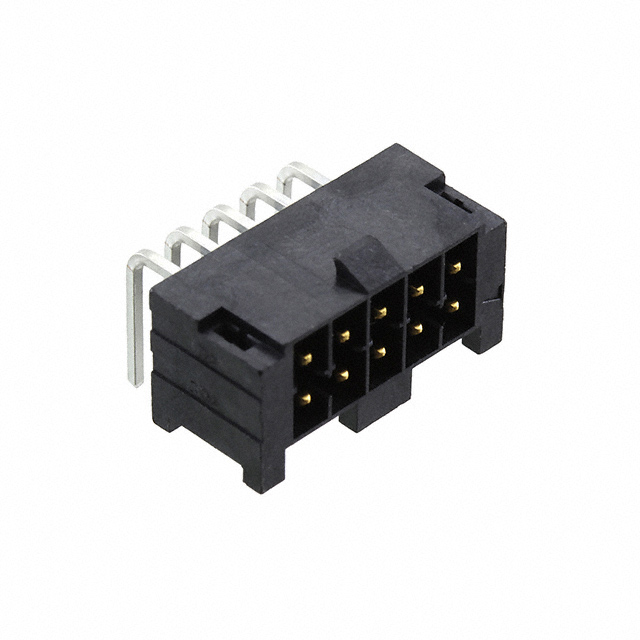

IPL1-105-01-L-D-RE1-K
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPL1-105-01-L-D-RE1-K with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPL1-105-01-L-D-RE1-K with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPL1-105-01-L-D-RE1-K |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .100 TERMINAL ASSY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 31 pcs | 124 pcs | ||
|---|---|---|---|---|---|
| $1.361 | $1.198 | $1.089 | |||
| 527 pcs | 1023 pcs | 5022 pcs | |||
| $0.926 | $0.789 | $0.708 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | IPL1-105-01-L-D-RE1-K | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .100 TERMINAL ASSY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 54649 pcs | Data sheet | IPL1-1yy-yy-y-D-RE1-K-yy DrawingIPL1 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 675VAC, 954VDC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini Mate® IPL1 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | SAM9600 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.325" (8.25mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.085" (2.16mm) | Contact Length - Mating | 0.215" (5.46mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
