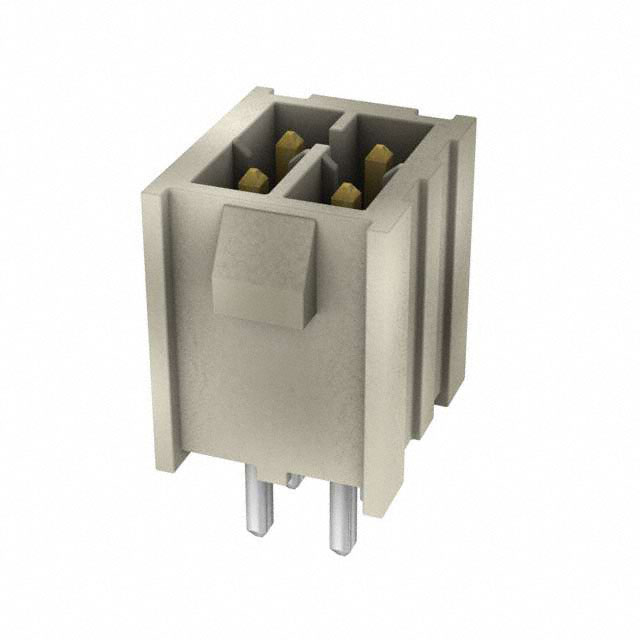

IPL1-102-01-S-D-K
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPL1-102-01-S-D-K with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPL1-102-01-S-D-K with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPL1-102-01-S-D-K |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN SHROUDED PWR HEADER 4POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 87 pcs | 174 pcs | 522 pcs | 1044 pcs |
|---|---|---|---|---|---|
| $1.378 | $1.158 | $1.103 | $0.937 | $0.799 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | IPL1-102-01-S-D-K | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN SHROUDED PWR HEADER 4POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48616 pcs | Data sheet | IPL1-1x-x-x-D-x DrawingIPL1 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 675VAC, 954VDC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini Mate® IPL1 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | IPL1-102-01-S-D-K-ND SAM10567 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.320" (8.13mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 4 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | 0.215" (5.46mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
