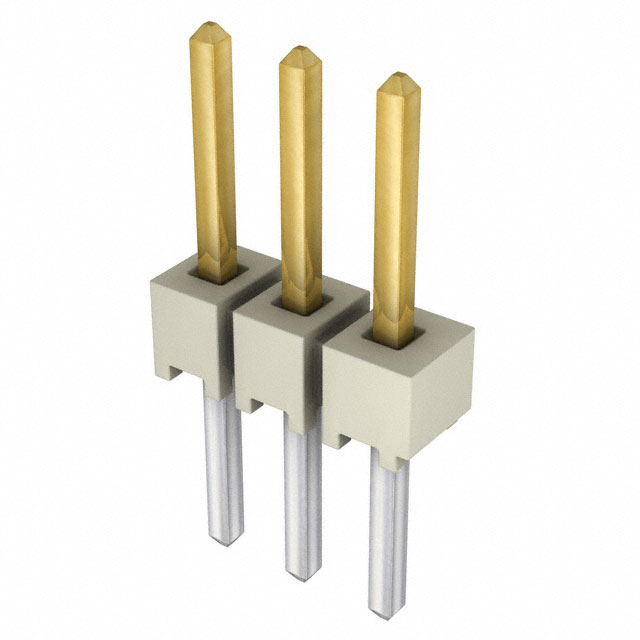

HTSW-103-08-S-S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HTSW-103-08-S-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HTSW-103-08-S-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HTSW-103-08-S-S |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN UNSHROUDED HEADER 3 POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.186 | $0.173 | $0.132 | $0.115 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.095 | $0.084 | $0.078 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HTSW-103-08-S-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN UNSHROUDED HEADER 3 POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 283764 pcs | Data sheet | HTSW Series DrawingHTSW, TSW Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | HTSW |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.530" (13.46mm) |
| Other Names | HTSW-103-08-S-S-ND Q5386830 SAM12424 T1239899 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 3 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.200" (5.08mm) | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
