HTSW-101-23-L-S

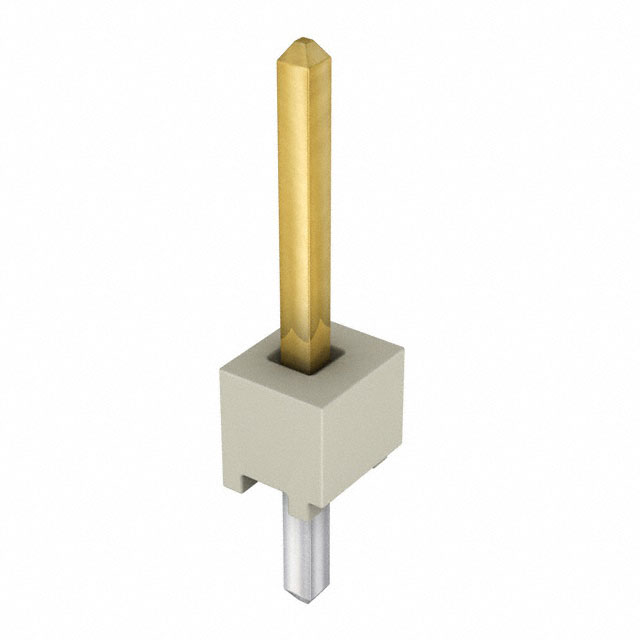

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HTSW-101-23-L-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HTSW-101-23-L-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HTSW-101-23-L-S |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN UNSHROUDED HEADER 1 POS SOL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.06 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HTSW-101-23-L-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN UNSHROUDED HEADER 1 POS SOL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 357662 pcs | Data sheet | HTSW Series DrawingHTSW, TSW Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | HTSW |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Bulk | Overall Contact Length | 0.445" (11.30mm) |
| Other Names | Q4017551M | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 1 position | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.115" (2.92mm) |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
