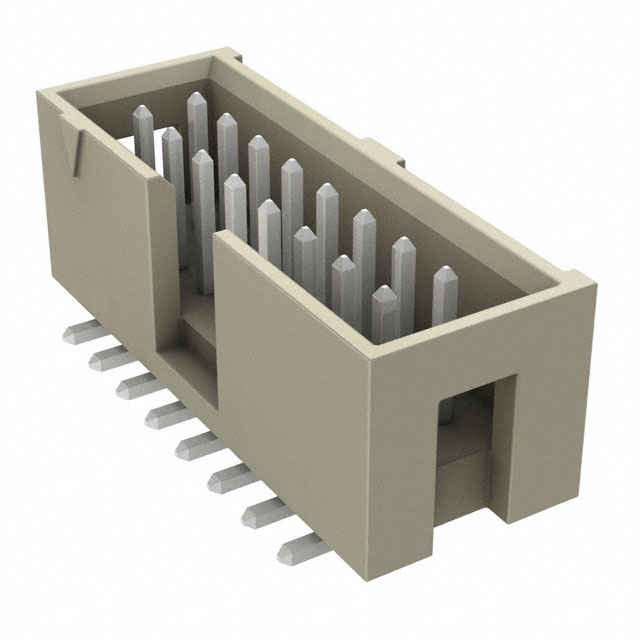

HTST-108-01-T-DV
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HTST-108-01-T-DV with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HTST-108-01-T-DV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HTST-108-01-T-DV |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | HIGH TEMP TOP SHROUD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.657 | $0.545 | $0.409 | $0.341 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.302 | $0.284 | $0.278 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HTST-108-01-T-DV | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | HIGH TEMP TOP SHROUD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76098 pcs | Data sheet | TST,HTST,ZST Series DatasheetHTST-1yy-01-yy-DV-yy-yy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Flex Stack, HTST |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | HTST-108-01-T-DV-ND SAM12650 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.350" (8.89mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 16 position 0.100" (2.54mm) |
| Current Rating | 3.4A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.250" (6.35mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
