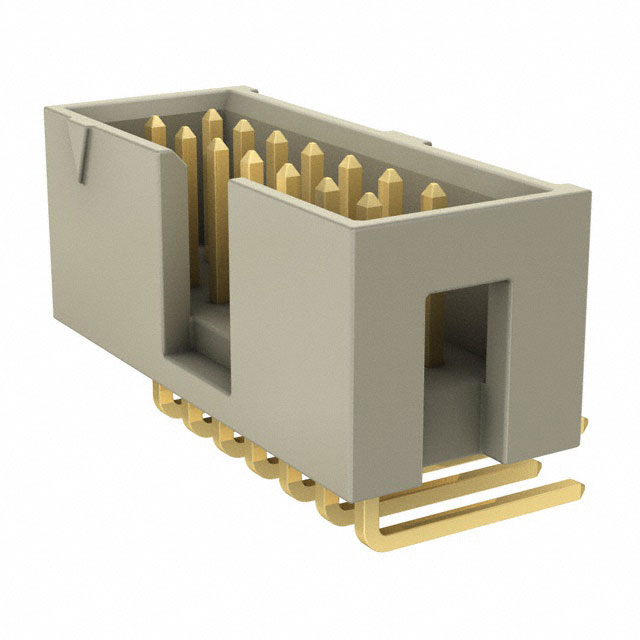

HTST-107-04-G-D-RA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HTST-107-04-G-D-RA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HTST-107-04-G-D-RA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HTST-107-04-G-D-RA |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | HIGH TEMP TOP SHROUD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.203 | $1.017 | $0.786 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.647 | $0.601 | $0.566 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HTST-107-04-G-D-RA | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | HIGH TEMP TOP SHROUD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69305 pcs | Data sheet | TST,HTST,ZST Series DatasheetHTST-1xx-xx-xx-D-xx-xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Flex Stack, HTST |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | HTST-107-04-G-D-RA-ND SAM11359 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.365" (9.27mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 14 position 0.100" (2.54mm) |
| Current Rating | 3.4A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | 0.250" (6.35mm) |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
