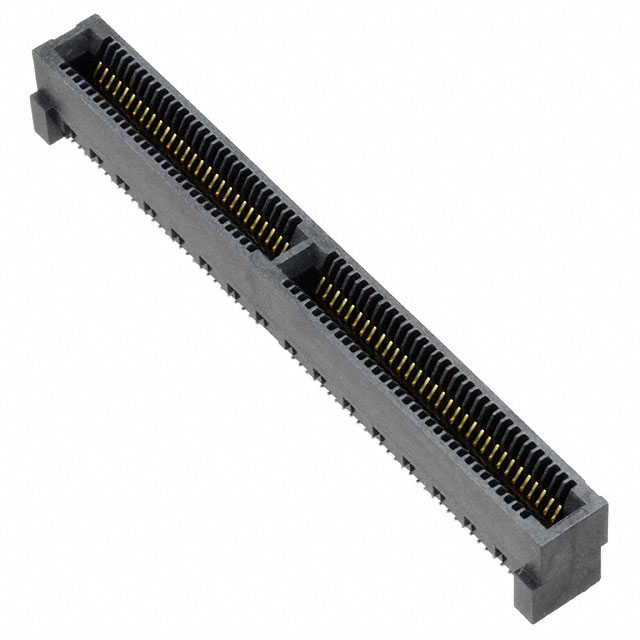

HSEC8-160-01-S-DV-A-K
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HSEC8-160-01-S-DV-A-K with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HSEC8-160-01-S-DV-A-K with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HSEC8-160-01-S-DV-A-K |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN EDGE DUAL FMALE 120POS .031 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 42 pcs | 84 pcs | 126 pcs |
|---|---|---|---|---|---|
| $2.474 | $2.371 | $2.164 | $2.061 | $1.958 | |
| 252 pcs | 504 pcs | 1008 pcs | 2520 pcs | ||
| $1.752 | $1.649 | $1.443 | $1.371 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HSEC8-160-01-S-DV-A-K | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 120POS .031 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23700 pcs | Data sheet | HSEC8-DV Series DatasheetHSEC8-1xxx-xx-xx-DV-x-xx Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | Edge Rate™ HSEC8 | Read Out | Dual |
| Pitch | 0.031" (0.80mm) | Packaging | Tray |
| Other Names | HSEC8-160-01-S-DV-A-K-ND SAM12643 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | 60 |
| Number of Positions | 120 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Liquid Crystal Polymer (LCP) |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | - |
| Features | Board Guide, Locking Ramp | Contact Type | Cantilever |
| Contact Material | Beryllium Copper | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Color | Black |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.062" (1.57mm) |
