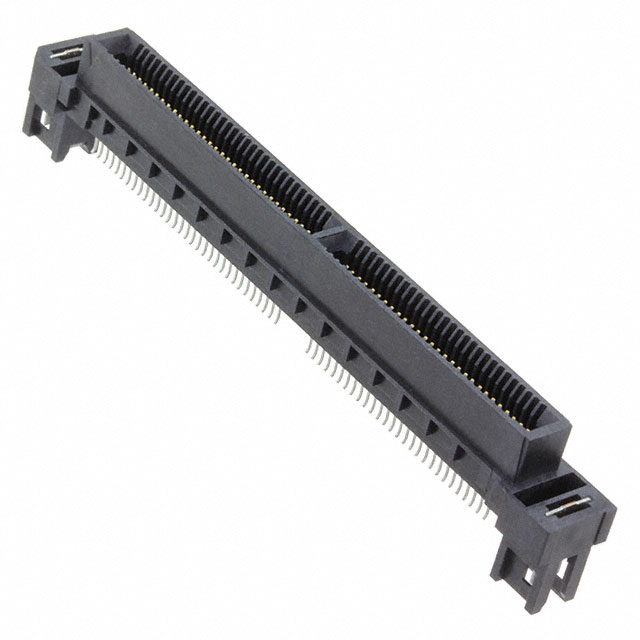

HSEC8-160-01-L-D-EM2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HSEC8-160-01-L-D-EM2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HSEC8-160-01-L-D-EM2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HSEC8-160-01-L-D-EM2 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .8MM HIGH SPEED DUAL VERTICAL MO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.883 | $4.439 | $4.328 | $3.995 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.773 | $3.44 | $3.219 | $2.952 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HSEC8-160-01-L-D-EM2 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .8MM HIGH SPEED DUAL VERTICAL MO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12311 pcs | Data sheet | HSEC8-EM Series DatasheetHSEC8-1xx-xx-x-D-EM2x Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | Edge Rate™ HSEC8 | Read Out | Dual |
| Pitch | 0.062" (1.57mm) | Packaging | Tube |
| Other Names | SAM9508 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | - |
| Number of Positions | 120 | Mounting Type | Board Edge, Straddle Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Liquid Crystal Polymer (LCP) |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | - |
| Features | - | Contact Type | - |
| Contact Material | Beryllium Copper | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Color | Black |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.063" (1.60mm) |
