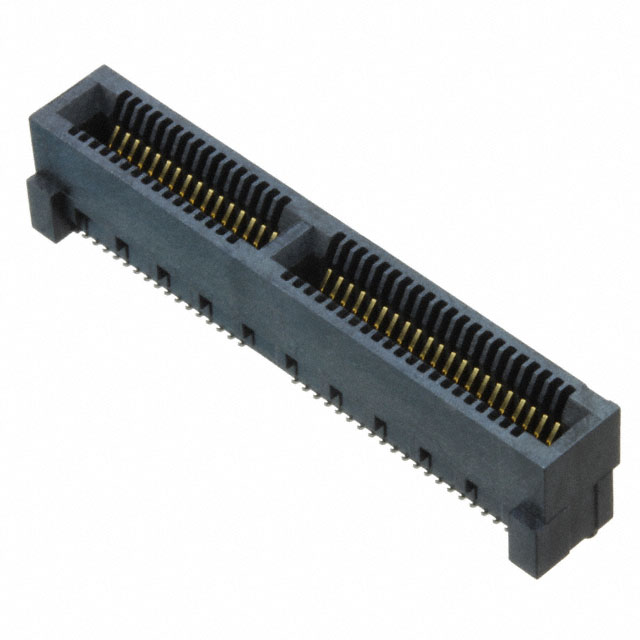

HSEC8-137-01-L-DV-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HSEC8-137-01-L-DV-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HSEC8-137-01-L-DV-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HSEC8-137-01-L-DV-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .8MM HIGH SPEED DUAL VERTICAL MO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.73 | $1.661 | $1.523 | $1.454 | $1.384 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.211 | $1.177 | $1.004 | $0.934 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HSEC8-137-01-L-DV-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .8MM HIGH SPEED DUAL VERTICAL MO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33710 pcs | Data sheet | HSEC8-DV Series DatasheetHSEC8-1xxx-xx-xx-DV-x-xx Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | Edge Rate™ HSEC8 | Read Out | Dual |
| Pitch | 0.031" (0.80mm) | Packaging | Tray |
| Other Names | HSEC8-137-01-L-DV-A-ND SAM12640 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | 37 |
| Number of Positions | 74 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Liquid Crystal Polymer (LCP) |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | - |
| Features | Board Guide, Locking Ramp | Contact Type | Cantilever |
| Contact Material | Beryllium Copper | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Color | Black |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.062" (1.57mm) |
