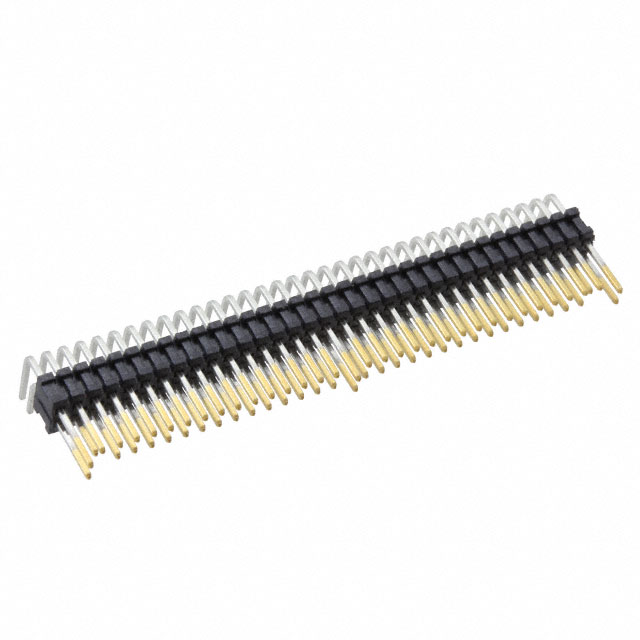

HPT-134-01-L-D-RA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HPT-134-01-L-D-RA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HPT-134-01-L-D-RA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HPT-134-01-L-D-RA |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 13 pcs | 104 pcs | 507 pcs | 1001 pcs |
|---|---|---|---|---|---|
| $3.035 | $2.903 | $2.441 | $2.045 | $1.808 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | HPT-134-01-L-D-RA | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18172 pcs | Data sheet | HPT Series |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | HPT |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | SAM9500 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 68 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | - | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 68 position 0.050" (1.27mm) |
| Current Rating | 1.75A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.090" (2.29mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
