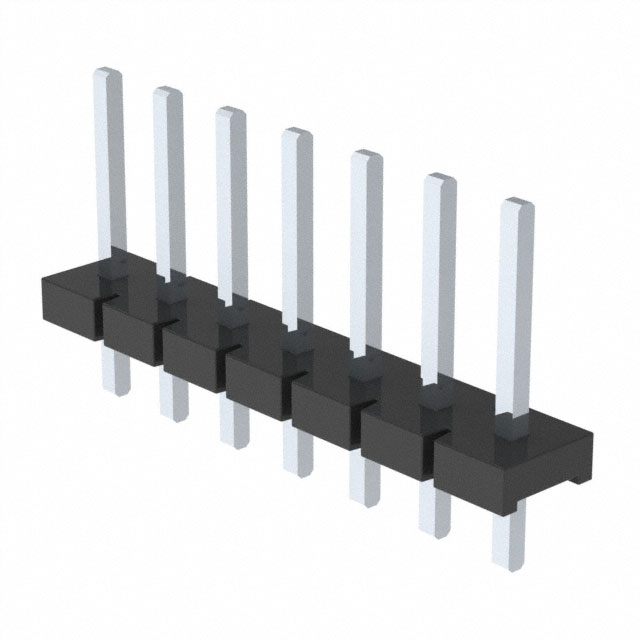

HPM-07-01-T-S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HPM-07-01-T-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HPM-07-01-T-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HPM-07-01-T-S |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .200 HIGH POWER BLOCK ASSEMBLY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.69 | $0.572 | $0.429 | $0.357 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.317 | $0.298 | $0.292 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HPM-07-01-T-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .200 HIGH POWER BLOCK ASSEMBLY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66717 pcs | Data sheet | HPM,HPW Series DatasheetHPM Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | HPM |
| Row Spacing - Mating | - | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Tube | Overall Contact Length | 0.750" (19.05mm) |
| Other Names | HPM-07-01-T-S-ND SAM11336 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 7 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 7 position 0.200" (5.08mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.180" (4.57mm) | Contact Length - Mating | 0.470" (11.94mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
