HLE-105-02-L-DV

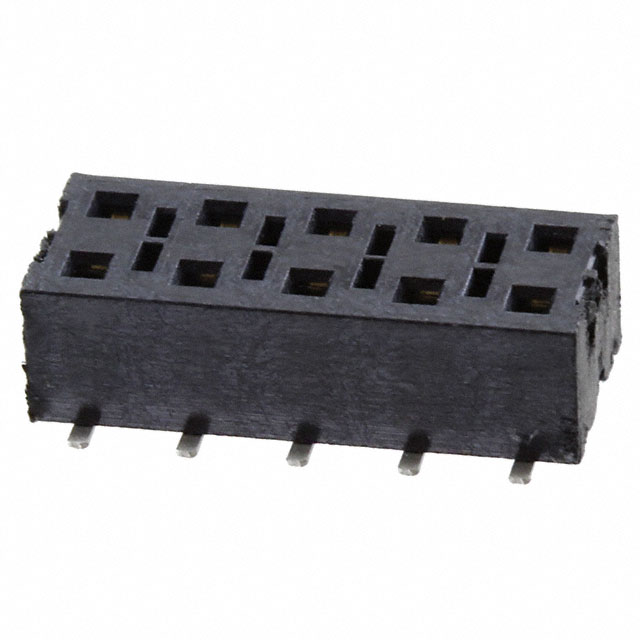

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HLE-105-02-L-DV with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HLE-105-02-L-DV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HLE-105-02-L-DV |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .100 TIGER BEAM SKT ASSY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 45 pcs | 135 pcs | ||
|---|---|---|---|---|---|
| $0.916 | $0.712 | $0.569 | |||
| 540 pcs | 1035 pcs | 5040 pcs | |||
| $0.474 | $0.421 | $0.395 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HLE-105-02-L-DV | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .100 TIGER BEAM SKT ASSY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78817 pcs | Data sheet | HLE-1xx-02-xxx-DV DrawingHLE Surface Mount FootprintHLE Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 400VAC |
| Termination | Solder | Style | Board to Board |
| Series | HLE | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | SAM9488 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.144" (3.66mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 10 Position Receptacle Connector Surface Mount |
| Current Rating | 4.1A per Contact | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Beryllium Copper |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
