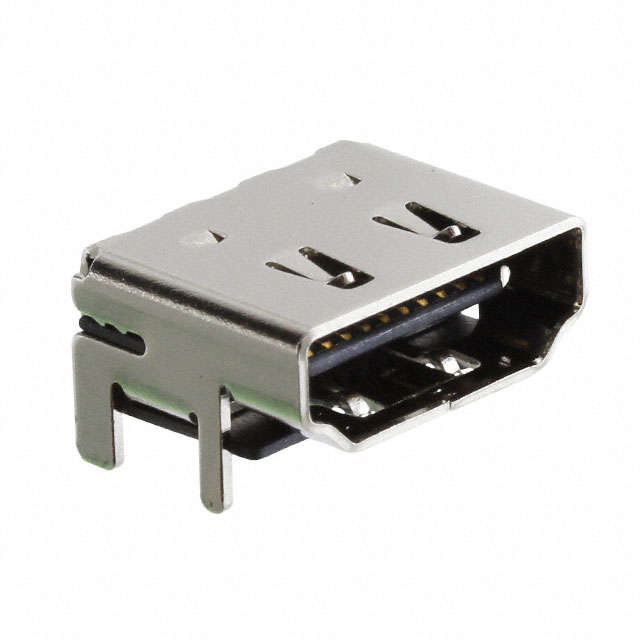

HDMR-19-01-S-SM
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDMR-19-01-S-SM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDMR-19-01-S-SM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDMR-19-01-S-SM |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | HDMR FLONGED SURFACE MOUNT SKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.867 | $1.79 | $1.641 | $1.566 | $1.492 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.305 | $1.268 | $1.082 | $1.007 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDMR-19-01-S-SM | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | HDMR FLONGED SURFACE MOUNT SKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30649 pcs | Data sheet | HDMR Series DatasheetHDMR Series Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | 40VAC |
| Termination | Solder | Specifications | - |
| Shielding | Shielded | Shell/Shielding Material | Brass |
| Series | - | Packaging | Bulk |
| Other Names | SAM9475 | Operating Temperature | -25°C ~ 85°C |
| Number of Ports | 1 | Number of Contacts | 19 |
| Mounting Type | Surface Mount, Right Angle | Mounting Feature | Horizontal |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 100 |
| Material Flammability Rating | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Ingress Protection | - |
| Gender | Receptacle | Features | Board Guide |
| Detailed Description | HDMI Receptacle Connector 19 Position Surface Mount, Right Angle | Current Rating | 1.3A per Contact |
| Contact Finish | Gold | Connector Type | HDMI |
