FW-12-05-L-D-500-140-A

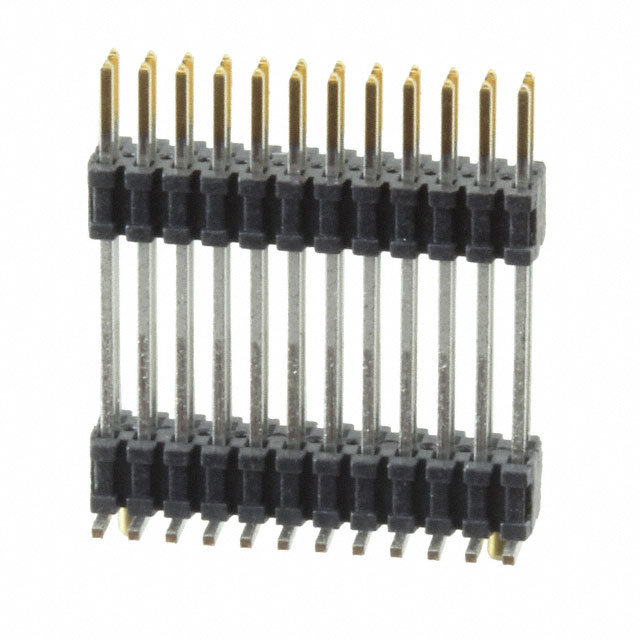

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FW-12-05-L-D-500-140-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FW-12-05-L-D-500-140-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FW-12-05-L-D-500-140-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN BOARD STKR HDR .50" 24POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.937 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FW-12-05-L-D-500-140-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN BOARD STKR HDR .50" 24POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16796 pcs | Data sheet | FW-SM Double Row, SMT FootprintFW Series SMT Double DrawingFW Series SMT Double Datasheet |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | Flex Stack, FW | Row Spacing | 0.050" (1.27mm) |
| Pitch | 0.050" (1.27mm) | Packaging | Tube |
| Number of Rows | 2 | Number of Positions | 24 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 3 Weeks | Length - Tail | - |
| Length - Stack Height | 0.500" (12.700mm) | Length - Post (Mating) | 0.140" (3.556mm) |
| Length - Overall Pin | 0.640" (16.256mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 24 Position Header Spacer Connector 0.050" (1.27mm) Gold Surface Mount | Contact Finish Thickness - Post (Mating) | 10.0µin (0.25µm) |
| Contact Finish - Post (Mating) | Gold | Color | Black |
