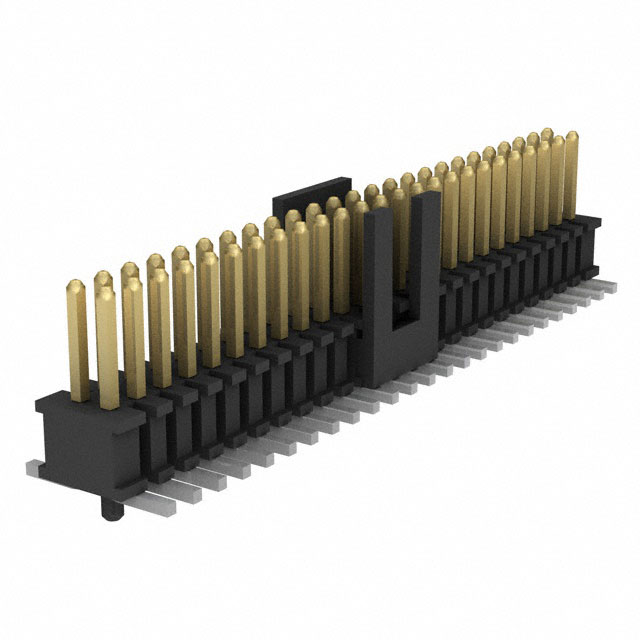

FTSH-125-01-L-DV-K-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FTSH-125-01-L-DV-K-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FTSH-125-01-L-DV-K-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FTSH-125-01-L-DV-K-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 50POS DUAL .05" SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $3.035 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FTSH-125-01-L-DV-K-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 50POS DUAL .05" SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10742 pcs | Data sheet | FTSH Series SMT DatasheetFTSH-1yy-yy-yyy-DV-yyy-yyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | FTSH |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 50 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.099" (2.51mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Keying Shroud | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 50 position 0.050" (1.27mm) | Current Rating | 3.4A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | 0.120" (3.05mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header, Cuttable |
| Applications | - |
