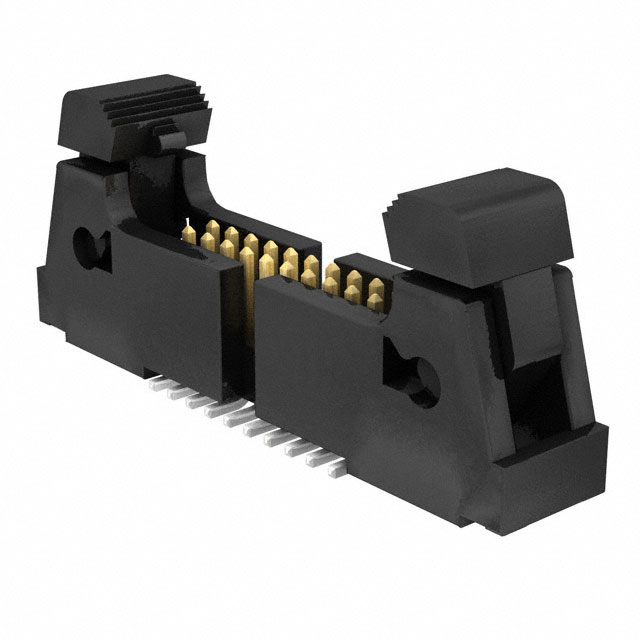

FTSH-110-01-F-DV-EJ
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FTSH-110-01-F-DV-EJ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FTSH-110-01-F-DV-EJ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FTSH-110-01-F-DV-EJ |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 20POS DUAL .05" SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 19 pcs | 114 pcs | 513 pcs | 1007 pcs |
|---|---|---|---|---|---|
| $1.70 | $1.63 | $1.358 | $1.154 | $0.985 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FTSH-110-01-F-DV-EJ | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 20POS DUAL .05" SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31958 pcs | Data sheet | FTSH Series SMT DatasheetFTSH-1yy-yy-yyy-DV-yyy-yyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | FTSH |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | FTSH-110-01-F-DV-EJ-ND SAM8801 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.099" (2.51mm) | Insulation Color | Black |
| Ingress Protection | - | Features | End Shrouds |
| Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Surface Mount 20 position 0.050" (1.27mm) |
| Current Rating | 3.4A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header, Cuttable | Applications | - |
