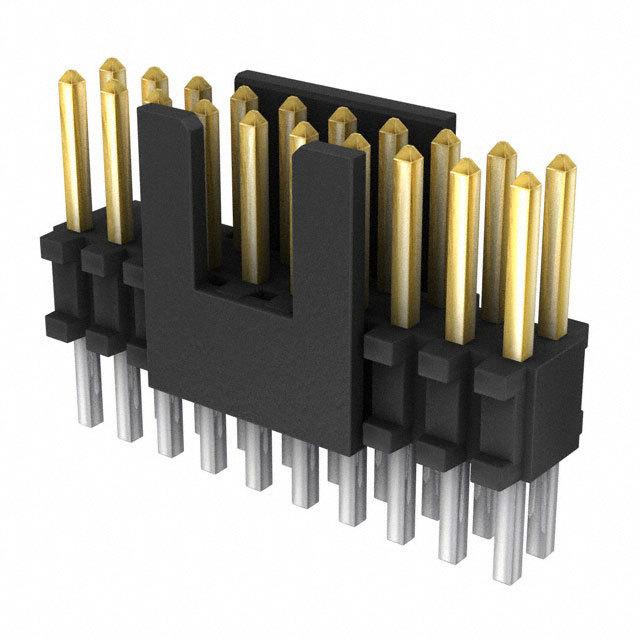

FTSH-110-01-F-D-K
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FTSH-110-01-F-D-K with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FTSH-110-01-F-D-K with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FTSH-110-01-F-D-K |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HDR 20 POS 1.27MM PITCH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 46 pcs | 138 pcs | 506 pcs | 1012 pcs |
|---|---|---|---|---|---|
| $1.446 | $1.271 | $1.156 | $0.982 | $0.838 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FTSH-110-01-F-D-K | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HDR 20 POS 1.27MM PITCH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42037 pcs | Data sheet | FTSH Double Row, Through Hole FootprintFTSH-1yy-yy-yy-D-yy-yy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | FTSH |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | 0.309" (7.86mm) |
| Other Names | FTSH-110-01-F-D-K-ND Q7598788 SAM10508 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.099" (2.51mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Shroud | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 20 position 0.050" (1.27mm) | Current Rating | 3.4A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.090" (2.29mm) |
| Contact Length - Mating | 0.120" (3.05mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header, Cuttable |
| Applications | - |
