FTS-108-03-F-D

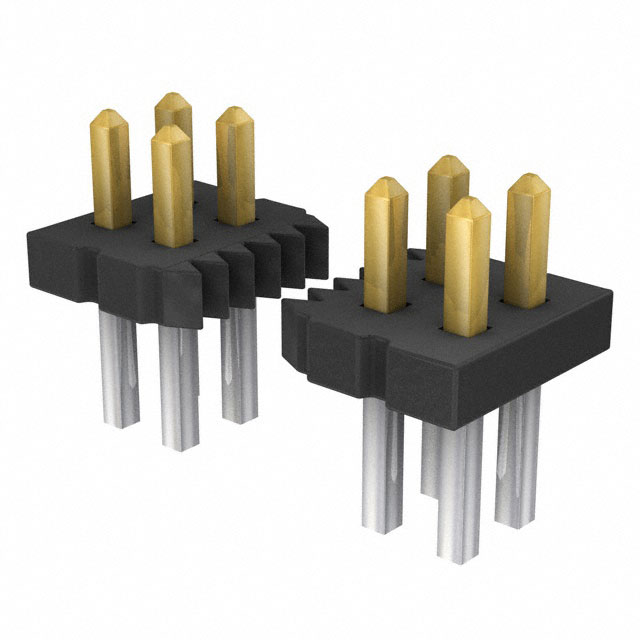

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FTS-108-03-F-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FTS-108-03-F-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FTS-108-03-F-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 16POS SNGL .05" T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 57 pcs | 114 pcs | ||
|---|---|---|---|---|---|
| $0.786 | $0.639 | $0.61 | |||
| 513 pcs | 1026 pcs | 5016 pcs | |||
| $0.509 | $0.436 | $0.386 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | FTS-108-03-F-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 16POS SNGL .05" T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84683 pcs | Data sheet | FTS Double Row, Through Hole FootprintFTS Series DatasheetFTS Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | FTS |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | 0.189" (4.80mm) |
| Other Names | FTS-108-03-F-D-ND SAM12594 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.034" (0.86mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 16 position 0.050" (1.27mm) |
| Current Rating | 3.4A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.090" (2.29mm) | Contact Length - Mating | 0.065" (1.65mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header, Cuttable | Applications | - |
