FTS-102-01-L-D

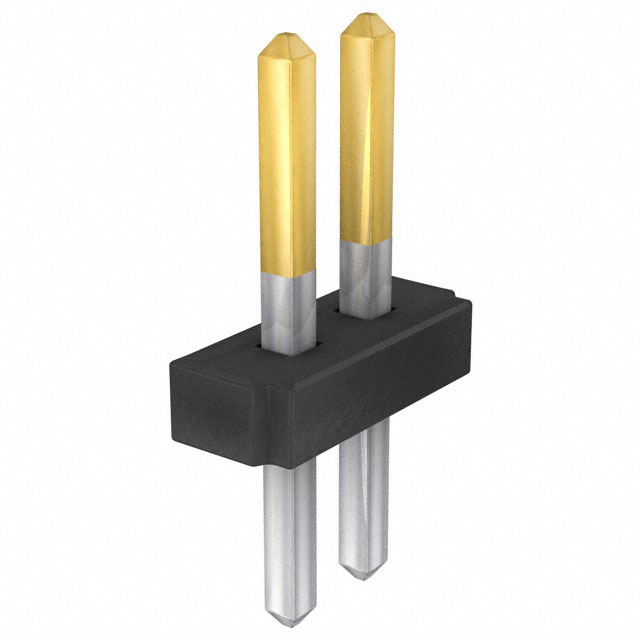

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FTS-102-01-L-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FTS-102-01-L-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FTS-102-01-L-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 2POS DUAL .05" T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.789 | $0.684 | $0.579 | $0.46 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.375 | $0.342 | $0.329 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | FTS-102-01-L-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 2POS DUAL .05" T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68901 pcs | Data sheet | FTS Double Row, Through Hole FootprintFTS Series DatasheetFTS Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | FTS |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Bulk | Overall Contact Length | 0.244" (6.20mm) |
| Other Names | SAM1156-01 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.034" (0.86mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 2 position 0.050" (1.27mm) |
| Current Rating | 3.4A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.090" (2.29mm) | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header, Cuttable | Applications | - |
