FTMH-156-03-L-DV

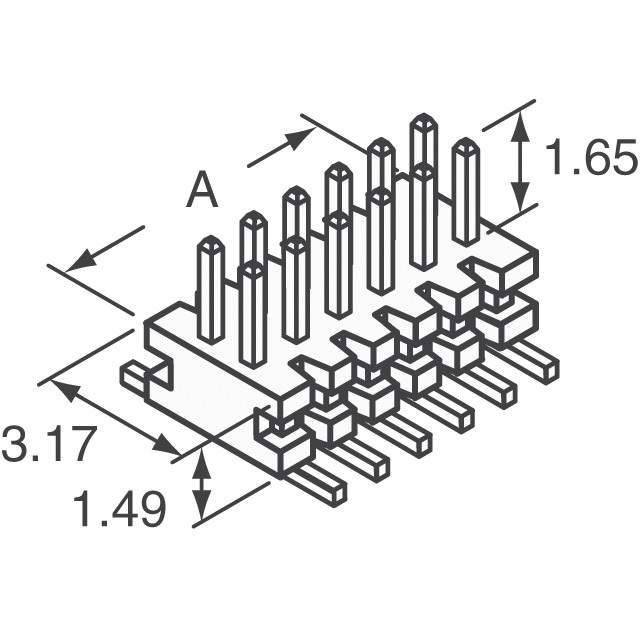

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FTMH-156-03-L-DV with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FTMH-156-03-L-DV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FTMH-156-03-L-DV |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 112POS DUAL 1MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $6.775 | $5.87 | $4.967 | $3.951 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $3.217 | $2.935 | $2.822 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | FTMH-156-03-L-DV | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 112POS DUAL 1MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13059 pcs | Data sheet | FTMH SMD (Double) FootprintFTMH Series DatasheetFTMH-1xx-xx-xx-DV-xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | FTMH |
| Row Spacing - Mating | 0.039" (1.00mm) | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | SAM1131-56 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 112 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.059" (1.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 112 position 0.039" (1.00mm) | Current Rating | 2.8A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | 0.065" (1.65mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
