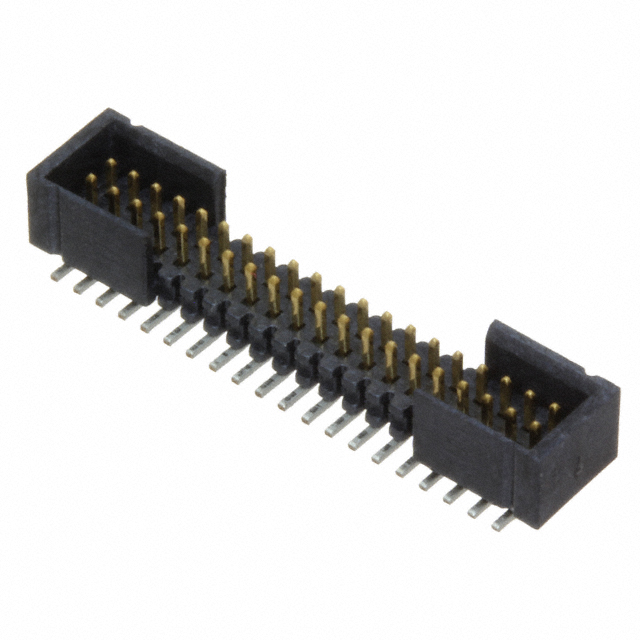

FTMH-120-03-F-DV-ES-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FTMH-120-03-F-DV-ES-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FTMH-120-03-F-DV-ES-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FTMH-120-03-F-DV-ES-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 1MM MICRO TERMINAL STRIPS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.313 | $2.217 | $1.832 | $1.542 | $1.35 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FTMH-120-03-F-DV-ES-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 1MM MICRO TERMINAL STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24365 pcs | Data sheet | FTMH Series DatasheetFTMH-1xx-xx-xx-DV-xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | FTMH |
| Row Spacing - Mating | 0.039" (1.00mm) | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | FTMH-120-03-F-DV-ES-A-ND SAM11226 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, End Shrouds |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 40 position 0.039" (1.00mm) |
| Current Rating | 2.8A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.065" (1.65mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
