FHP-20-01-T-S

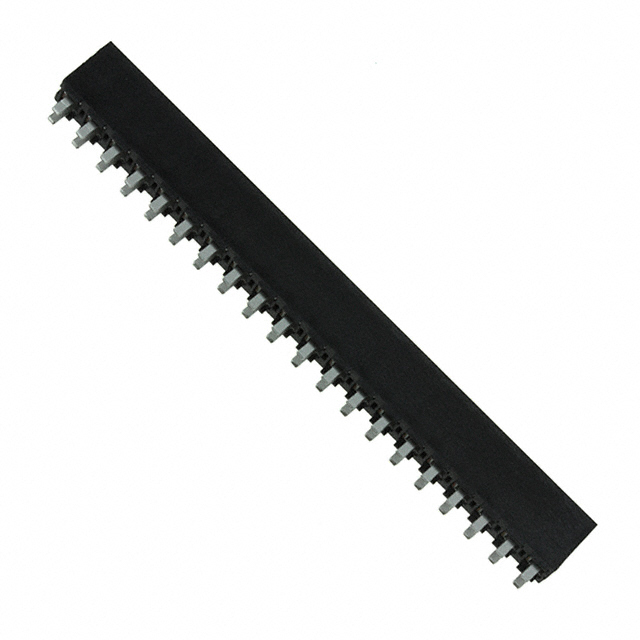

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FHP-20-01-T-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FHP-20-01-T-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FHP-20-01-T-S |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT .156" 20POS TIN T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $2.223 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FHP-20-01-T-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT .156" 20POS TIN T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14069 pcs | Data sheet | FHP Thru Hole FootprintFHP Spec DatasheetFHP Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | FHP | Row Spacing - Mating | - |
| Pitch - Mating | 0.156" (3.96mm) | Packaging | Bulk |
| Other Names | SAM8410 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.350" (8.89mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 20 Position Receptacle Connector 0.156" (3.96mm) Through Hole Tin | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.102" (2.60mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Receptacle | Applications | - |
