FHP-05-01-T-S

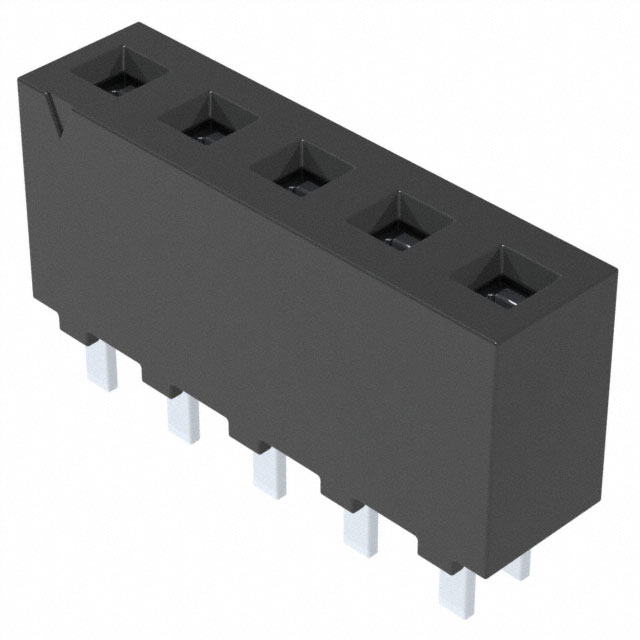

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FHP-05-01-T-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FHP-05-01-T-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FHP-05-01-T-S |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT .156" 5POS TIN T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 29 pcs | 116 pcs | ||
|---|---|---|---|---|---|
| $0.945 | $0.764 | $0.619 | |||
| 522 pcs | 1015 pcs | 5017 pcs | |||
| $0.509 | $0.473 | $0.446 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | FHP-05-01-T-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT .156" 5POS TIN T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76198 pcs | Data sheet | FHP Thru Hole FootprintFHP Spec DatasheetFHP Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | FHP | Row Spacing - Mating | - |
| Pitch - Mating | 0.156" (3.96mm) | Packaging | Bulk |
| Other Names | SAM8380 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.350" (8.89mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 5 Position Receptacle Connector 0.156" (3.96mm) Through Hole Tin |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.102" (2.60mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | - |
