FC1-15-02-T-WT

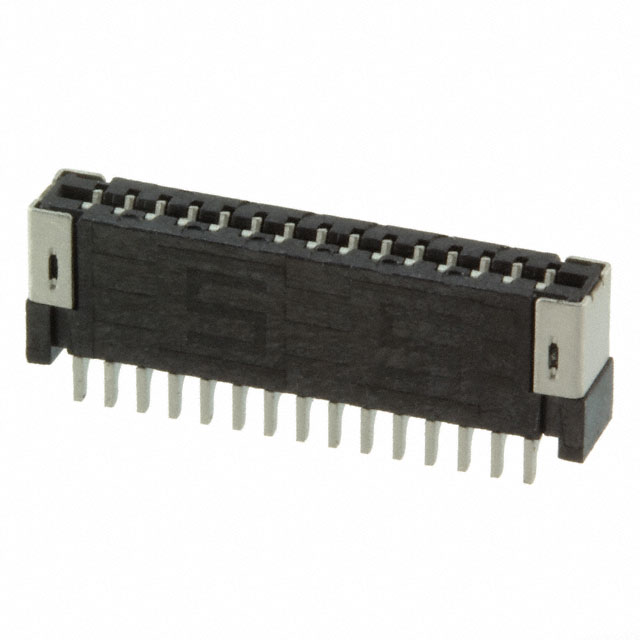

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FC1-15-02-T-WT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FC1-15-02-T-WT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FC1-15-02-T-WT |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN FFC 15POS 1.00MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.782 | $0.71 | $0.666 | $0.637 | $0.608 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.551 | $0.507 | $0.435 | $0.406 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | FC1-15-02-T-WT | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN FFC 15POS 1.00MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80557 pcs | Data sheet | FC1-xx-xx-xx-xx DrawingZF1,FC1 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Series | FC1 |
| Pitch | 0.039" (1.00mm) | Packaging | Tube |
| Other Names | FC1-15-02-T-WT-ND Q6383787 SAM8898 |
Operating Temperature | -55°C ~ 105°C |
| Number of Positions | 15 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 25 |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 3 Weeks |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | Black |
| Height Above Board | - | Flat Flex Type | FFC |
| Features | Solder Retention | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 15 Position FFC Connector Contacts, Top and Bottom 0.039" (1.00mm) Surface Mount, Right Angle | Current Rating | 2A per Contact |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | - | Actuator Material | - |
| Actuator Color | - |
