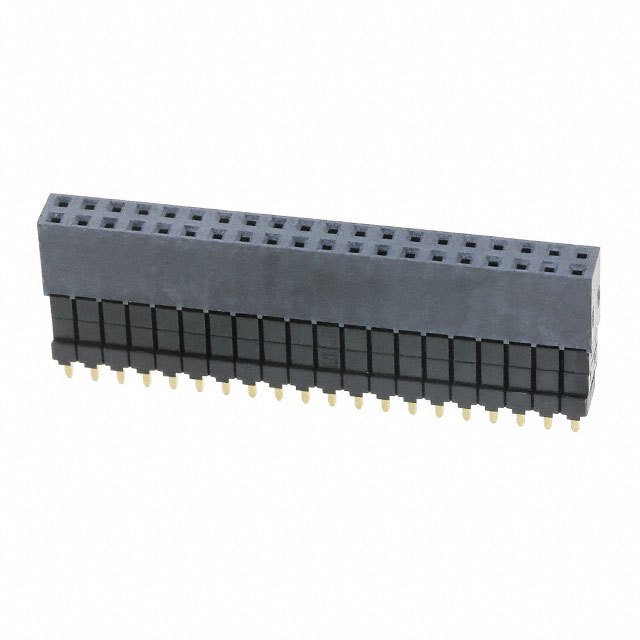

ESW-120-33-G-D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ESW-120-33-G-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ESW-120-33-G-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ESW-120-33-G-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN SOCKET 40 POS 2.54MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 11 pcs | 110 pcs | 506 pcs | 1001 pcs |
|---|---|---|---|---|---|
| $2.777 | $2.537 | $1.933 | $1.631 | $1.54 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ESW-120-33-G-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN SOCKET 40 POS 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21417 pcs | Data sheet | ESW,ESQ Series DatasheetESW Thru Hole FootprintESW Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 550VAC |
| Termination | Solder | Style | Board to Board |
| Series | ESW | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | ESW-120-33-G-D-ND ESW12033GD SAM9012 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.635" (16.13mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 40 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | 5.2A per Contact |
| Contact Type | Forked | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.090" (2.29mm) |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Elevated Socket | Applications | - |
