ESQT-130-03-G-Q-368

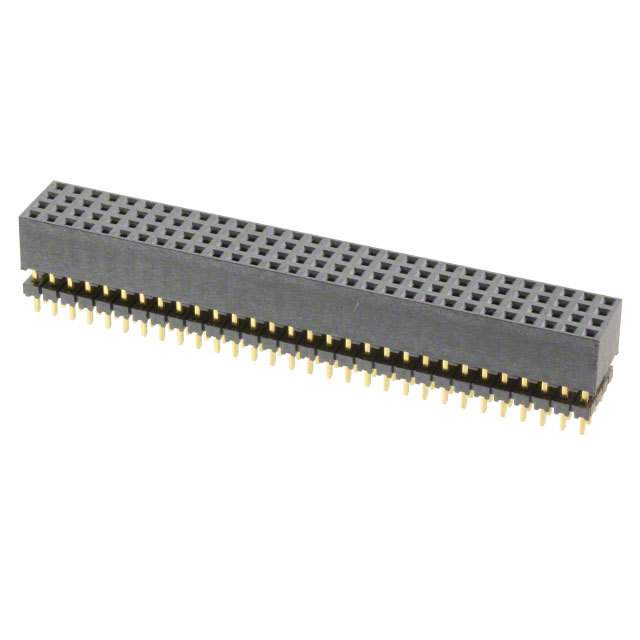

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ESQT-130-03-G-Q-368 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ESQT-130-03-G-Q-368 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ESQT-130-03-G-Q-368 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN SOCKET 2MM 120POS QUAD ROW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 18 pcs | 108 pcs | 504 pcs | |
|---|---|---|---|---|---|
| $8.064 | $7.776 | $7.20 | $6.912 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ESQT-130-03-G-Q-368 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN SOCKET 2MM 120POS QUAD ROW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4420 pcs | Data sheet | ESQT Series DrawingESQT Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | ESQT | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | ESQT-130-03-G-Q-368-ND SAM8776 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 120 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.368" (9.35mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 120 Position Elevated Socket Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | 4.5A per Contact |
| Contact Type | Forked | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.090" (2.29mm) |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Elevated Socket | Applications | - |
